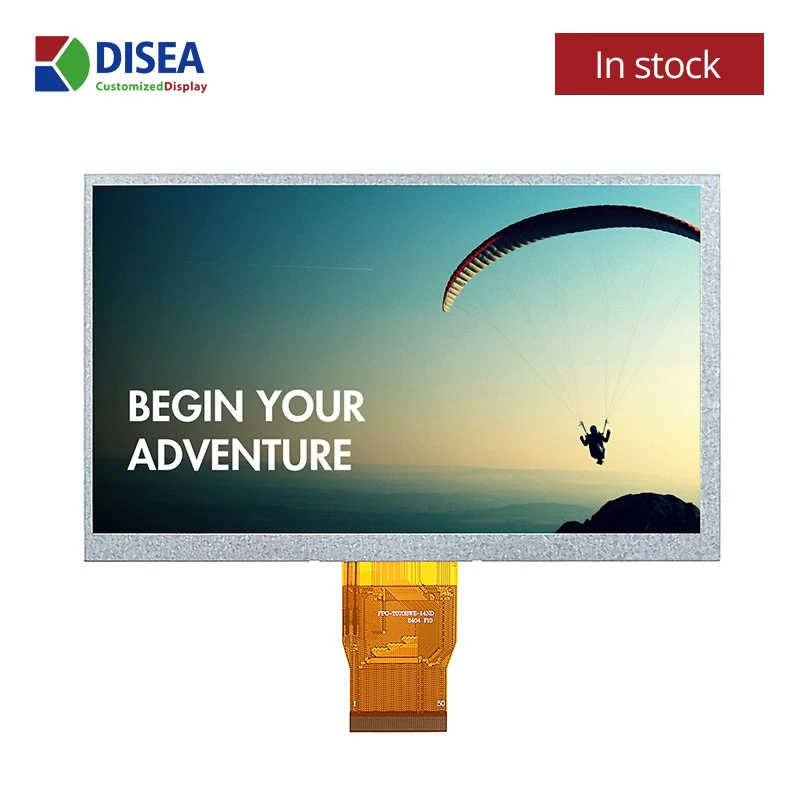

ZW-T070SWH-19

7 inch 800×480 TFT Module with 800 cd/m2 High Brightness Backlight

Production State
In Production
Stock Quantity
10 PCS
Inquiry Now

ZW-T070SWH-19 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a back light unit.The 7.0 display area contains 800x(RGB)x480 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.


Feature Specification Unit
Brand Disea -
Size 7 inch
Resolution 800*480 dots
Pixel pitch 0.1926(W)x 0.1790(H) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 800 cd/m2
LCM (W * H * D) 165.00*100.00*5.70 mm
Active Area (W * H ) 154.08*85.92 mm
With /Without TP Without TP -
LED Numbers 30-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB-24bit/50PIN -
LCM Power Supply 3.3 V
LED  Power Supply 9 V
Color Depth 262K -
LCM Driver IC - -
CTP Dricer IC - -

Stock and Customization

Please contact us for product availability. In most cases customers need to customise their own TFT LCD screen. Our experienced project managers can help you evaluate your project, recommend the most suitable product or make the most logical customisation suggestions. The evaluation is free of charge and we're happy to help even if you don't decide to go with us.
