ZW-T050BWSA-02P

5 inch 800x480 WVGA Resistive Touch IPS Screen

Production State
In Production
Stock Quantity
10 PCS
Inquiry Now

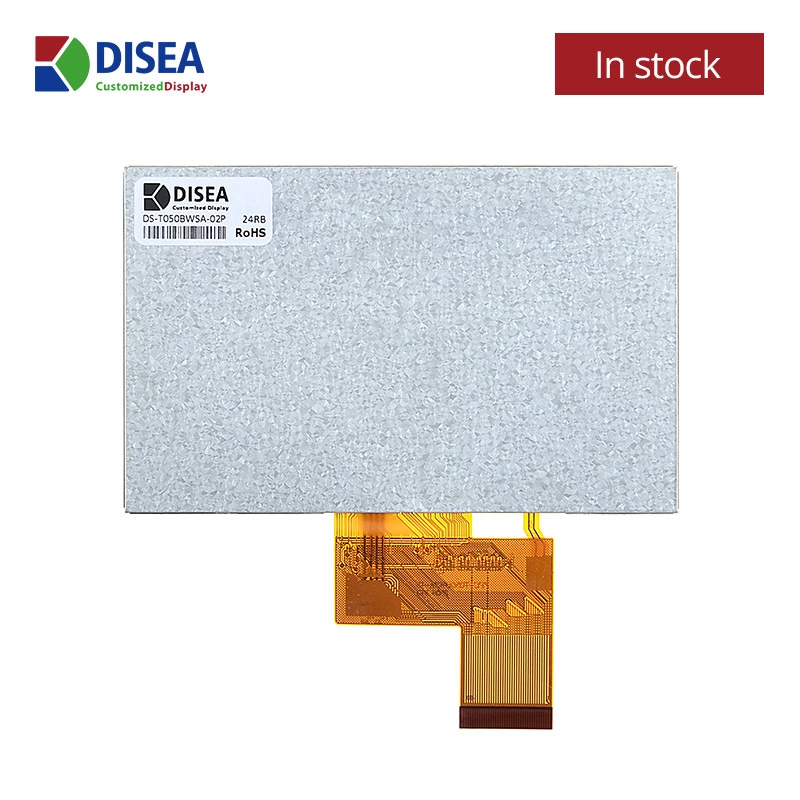

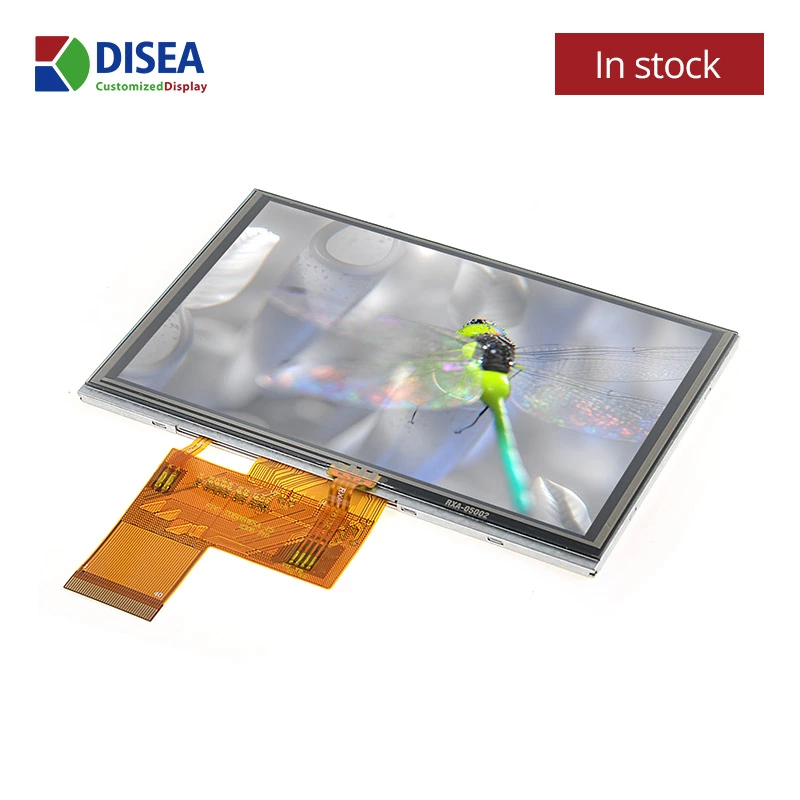

ZW-T050BWSA-02P is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC, a back light and RTP unit.The 5.0 display area contains 800x(RGB)x480 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.

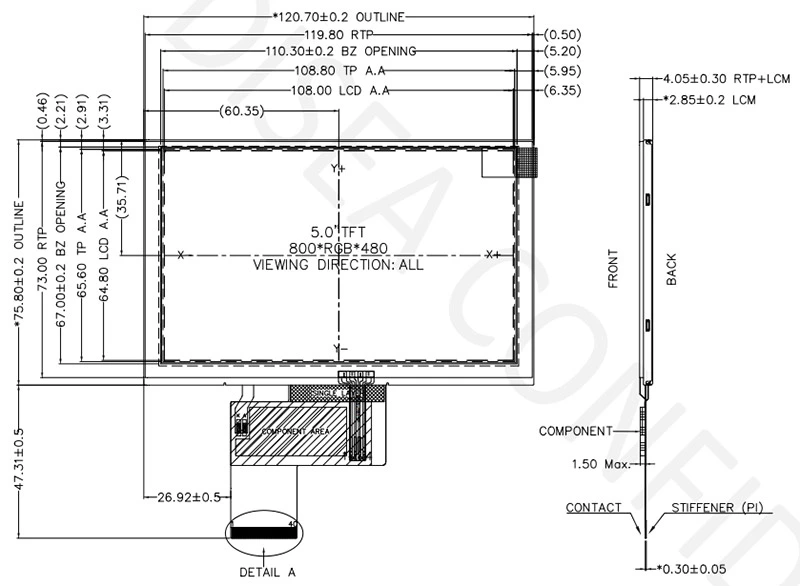

ZW-T050BWSA-02P outline drawing

Feature Specification Unit
Brand Disea -
Size 5.0  inch
Resolution 800*480 dots
Pixel pitch 0.135(H) x 0.135V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 350 cd/m2
LCM (W * H * D) 120.70*75.80*4.05 mm
Active Area (W * H ) 108.00*64.80 mm
With /Without TP With RTP -
LED Numbers 6S3P-LED pcs
Operation temperature -30~+80
Storage temperature -30~+80
Interface RGB888/40PIN -
LCM Power Supply 3.3 V
LED  Power Supply 18.0  V
Color Depth 16.7M -
LCM Driver IC ST7262 -
CTP Dricer IC - -
