ZW-T0276BCSA-01

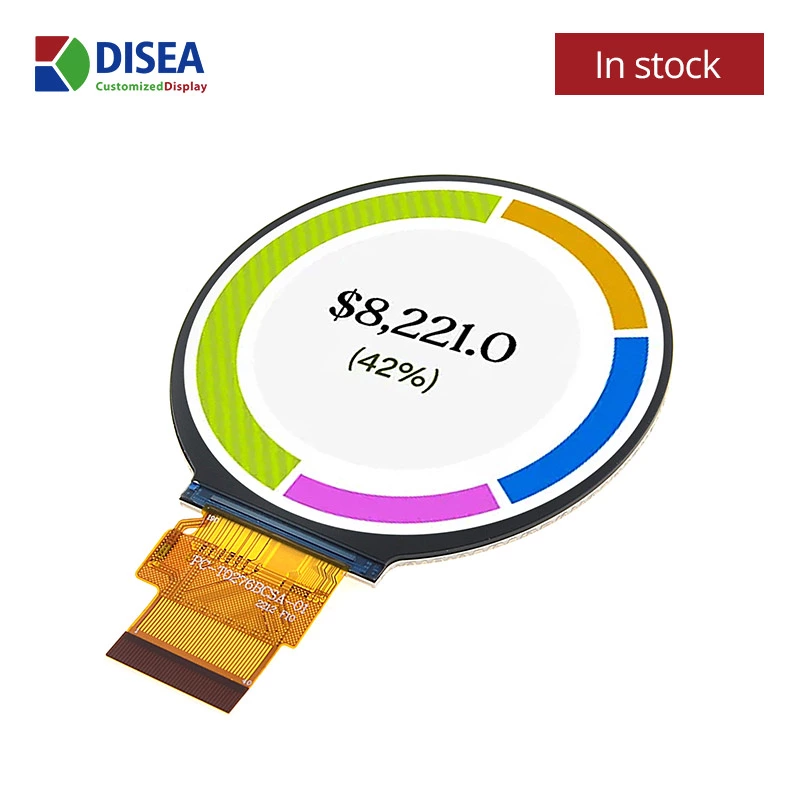

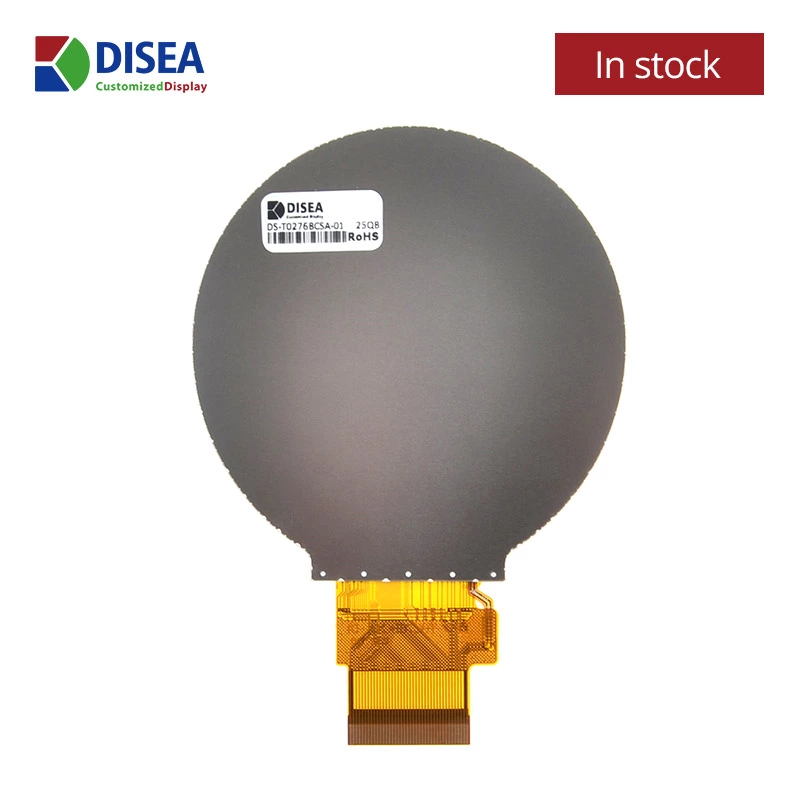

2.7 inch 480×480 Circular Shape TFT LCD Module

Production State
In Production
Stock Quantity
10 PCS
Inquiry Now

ZW-T0276BCSA-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit and. The 2.76" display area contains 480x480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

ZW-T0276BCSA-01

Item Contents Unit
LCD Type TFT -
Display color 16.7M
Viewing Direction ALL O’Clock
Operating temperature -30~+80
Storage temperature -30~+80
Module size 73.03×103.98×2.26 mm
Active Area(W×H) 70.13×70.13 mm
Number of Dots 480×480 dots
Driver IC ST7701S -
Power Supply Voltage 3.3 V

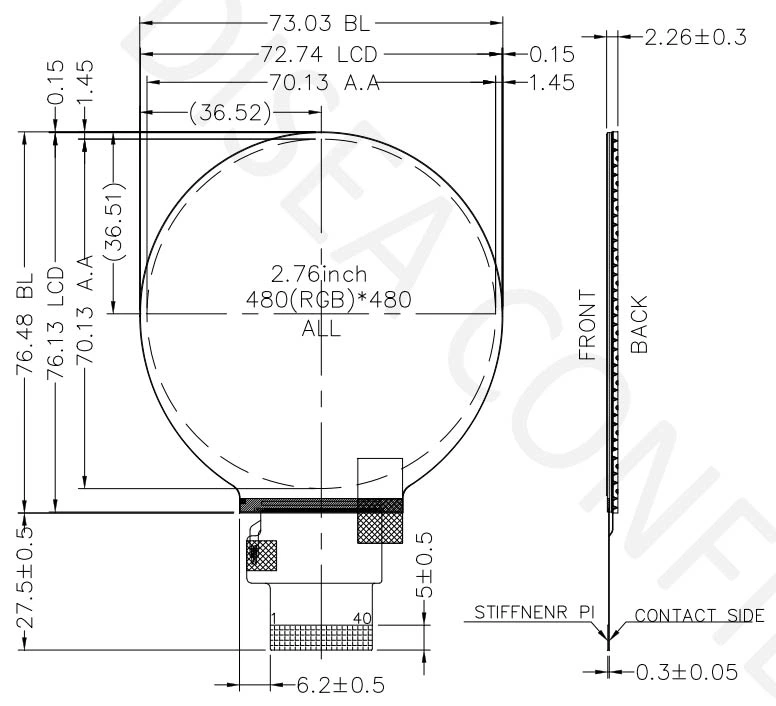

Outline Dimensions Refer to outline drawing -
Backlight 4P-LEDs (white) pcs
Luminance 250 cd/m2
Interface RGB24bit -



Stock and Customization

Please contact us for product availability. In most cases customers need to customise their own TFT LCD screen. Our experienced project managers can help you evaluate your project, recommend the most suitable product or make the most logical customisation suggestions. The evaluation is free of charge and we're happy to help even if you don't decide to go with us.
