CM-T070BWE-14ND

7.0 inch 800x480 pixels TFT LCD display with EK9716BD4/EK73002AB2 Controller

Production State
In Production
Stock Quantity
10 PCS
Inquiry Now

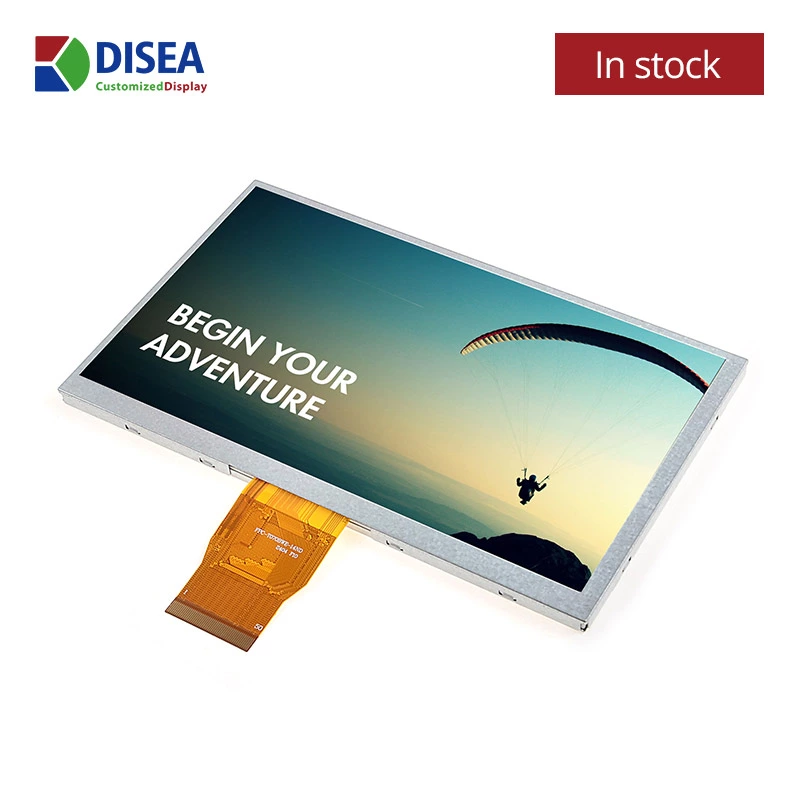

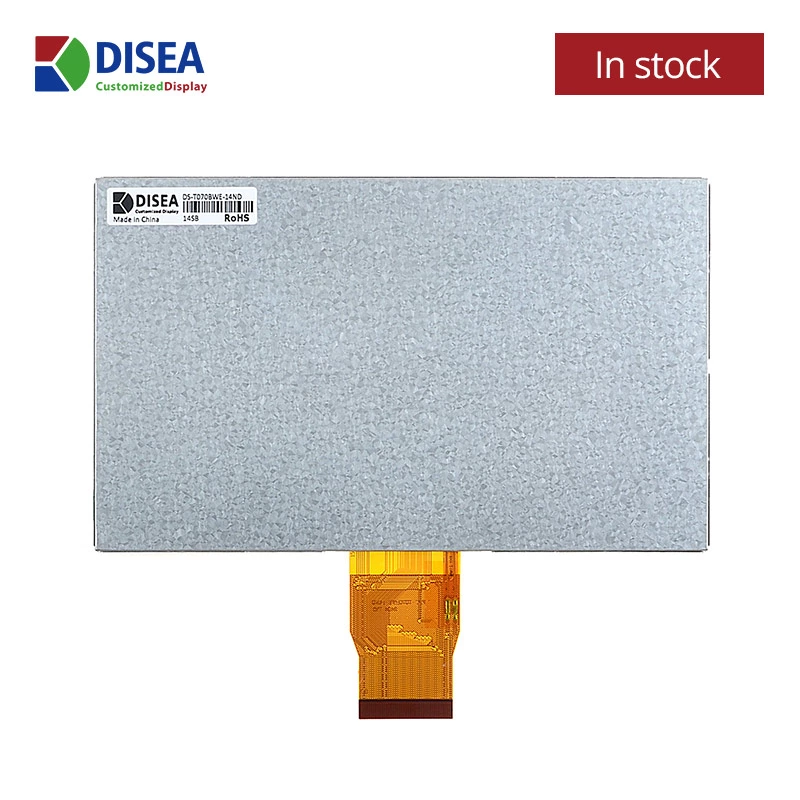

CM-T070BWE-14ND is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 7.0" display area contains 800x480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

CM-T070BWE-14ND

Item Contents  Unit
LCD Type TFT -
Display color 16.7M -
Viewing Direction 12 O’Clock
Gray scale inversion direction 6 O’Clock
Operating temperature -20~+55
Storage temperature -20~+60
Outline Dimensions 164.9X100X5.6 mm
Active Area(WxH) 153.84X85.63 mm
Number of Dots 800x480 dots
Controller EK9716BD4/EK73002AB2 -
Power Supply Voltage 3.3 V
Backlight 3X7-LEDs (white) pcs
Lcm luminance 330 cd/m²
Interface RGB888 -

Stock and Customization

Please contact us for product availability. In most cases customers need to customise their own TFT LCD screen. Our experienced project managers can help you evaluate your project, recommend the most suitable product or make the most logical customisation suggestions. The evaluation is free of charge and we're happy to help even if you don't decide to go with us.
